Introduction

This document outlines the steps to configure the System for SINGLE SIGN-ON (SSO) for SPOTIO within the Microsoft Entra Admin Center. The process includes setting up a new application

Steps

Step 1: Create a New Application in Microsoft Entra

• Navigate to the Microsoft Entra Admin Center.
• Go to Applications -> Enterprise applications.
• Click on New application.
• Select Create your own application.
• Enter the application name as SPOTIO.
• Choose the option Integrate any other application you don't find in the gallery (Non-gallery).
• Save the application

Step 2: Spotio Application

• Log in to your SPOTIO account.
• Navigate to Settings -> Integration -> Single Sign-On (SSO) Spotio SSO


Step 3: Configure Azure SAML

• Navigate to the created application

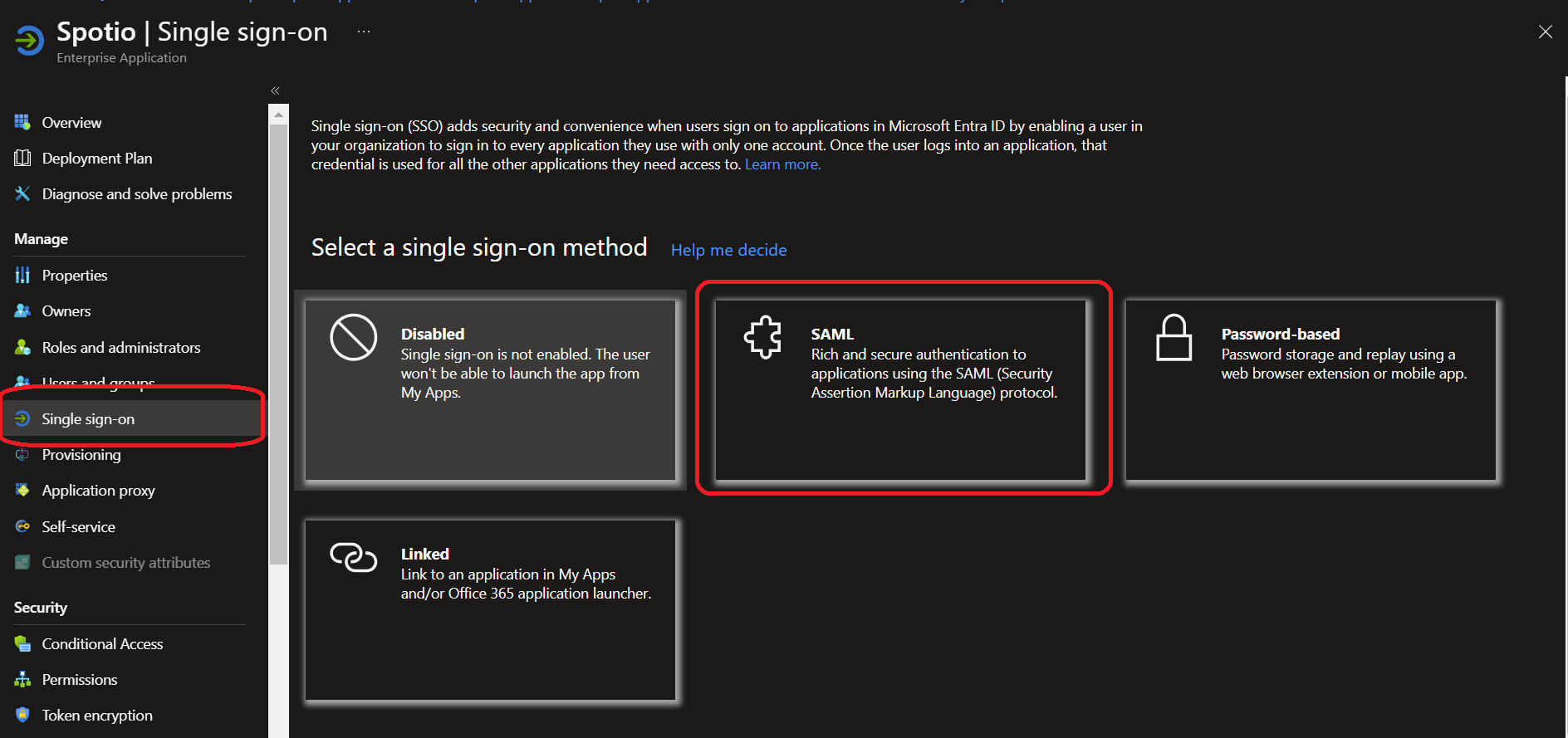

• Go to SSO section and select SAML method
• Now you should see configuration for saved application

• Edit basic SAML configuration

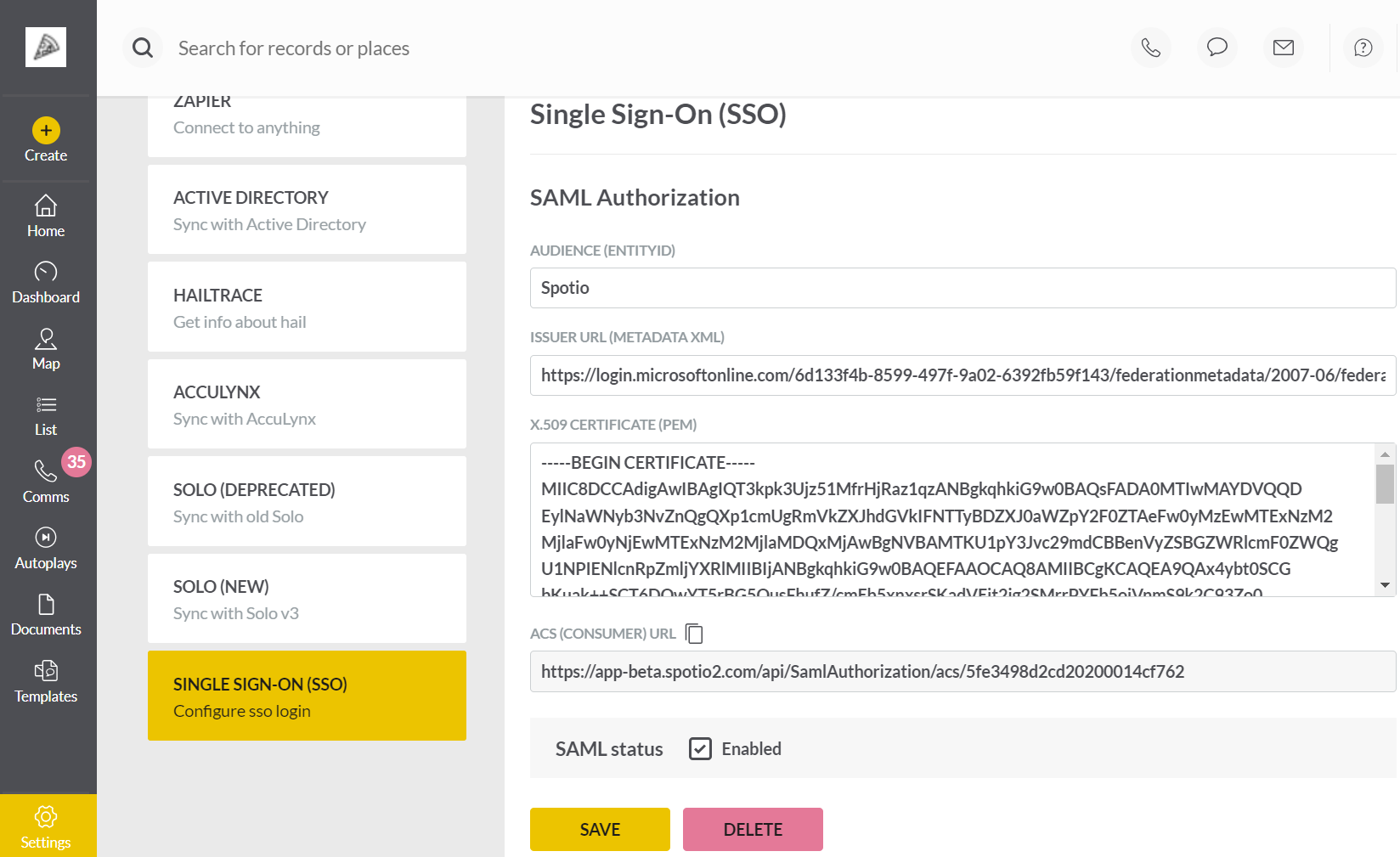

• In Spotio go to SSO settings
• Copy data from Spotio

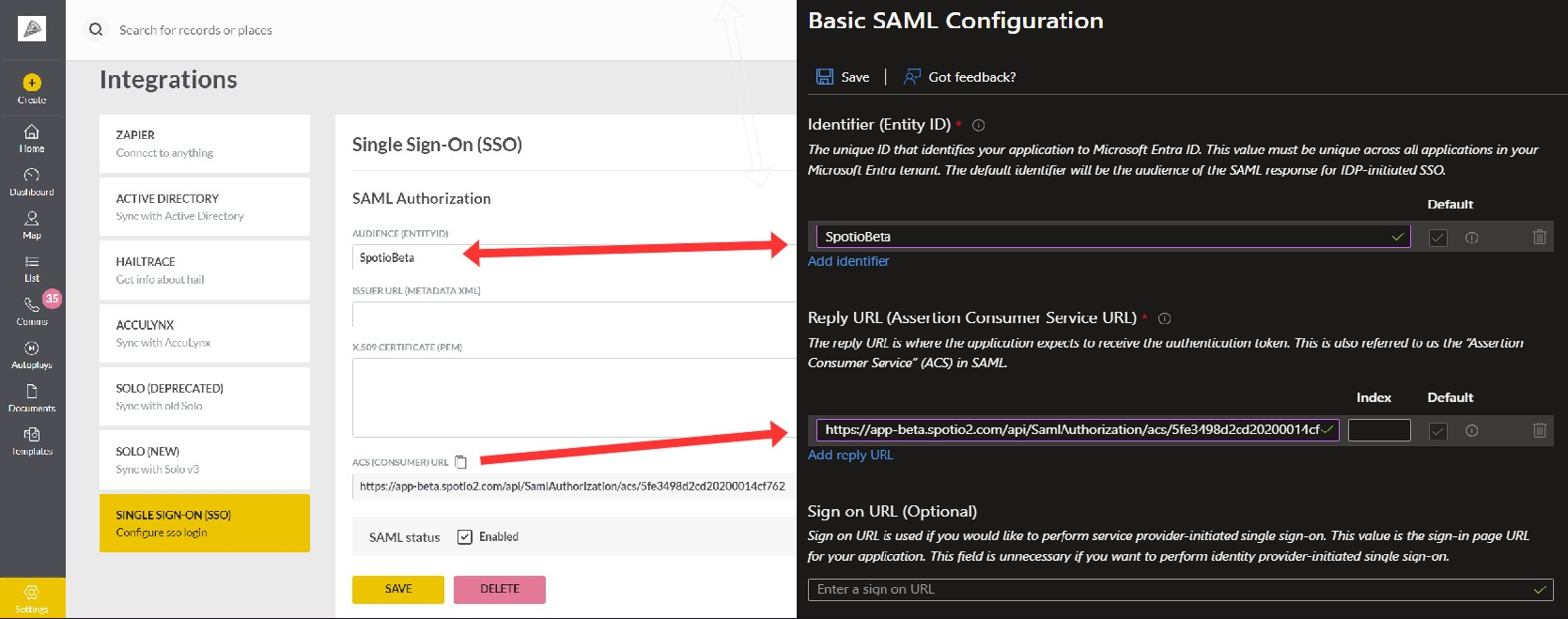

  • Set Audience with value: Spotio and copy it to MicrosoftEntraId
  • Copy ACS (CONSUMER) URL from Spotio to MicrosoftEntraId
• Save Basic SAML Configuration

Step 4: Configure Spotio SSO

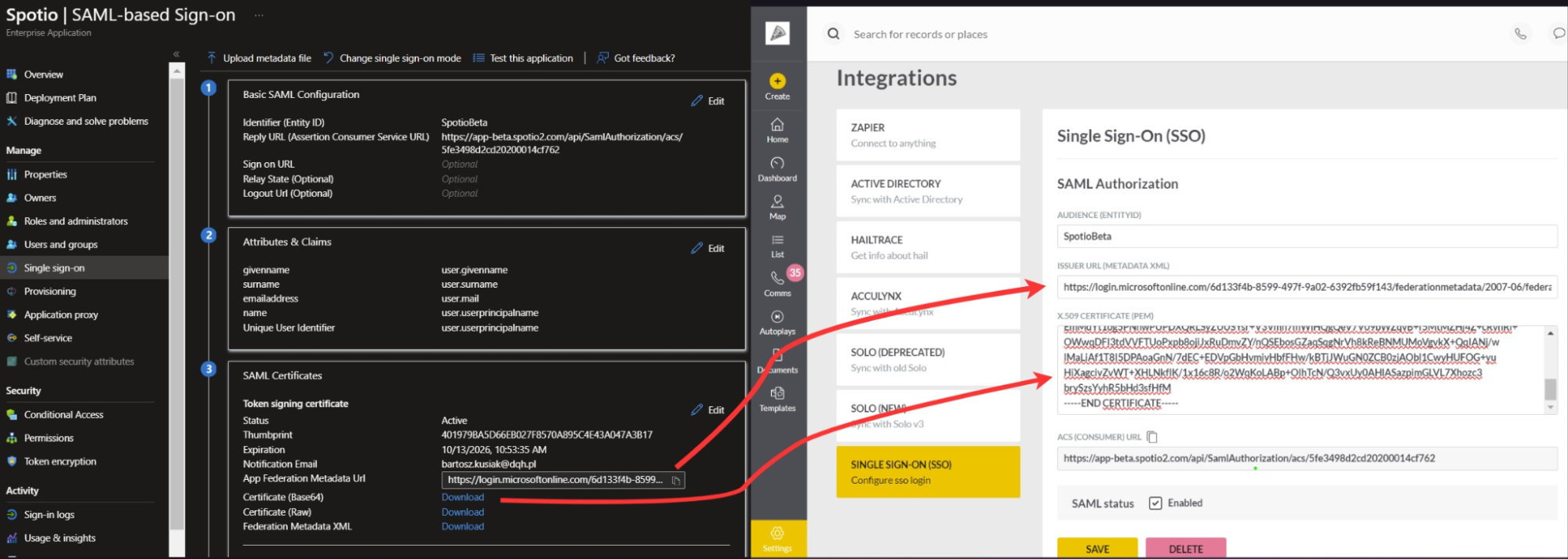

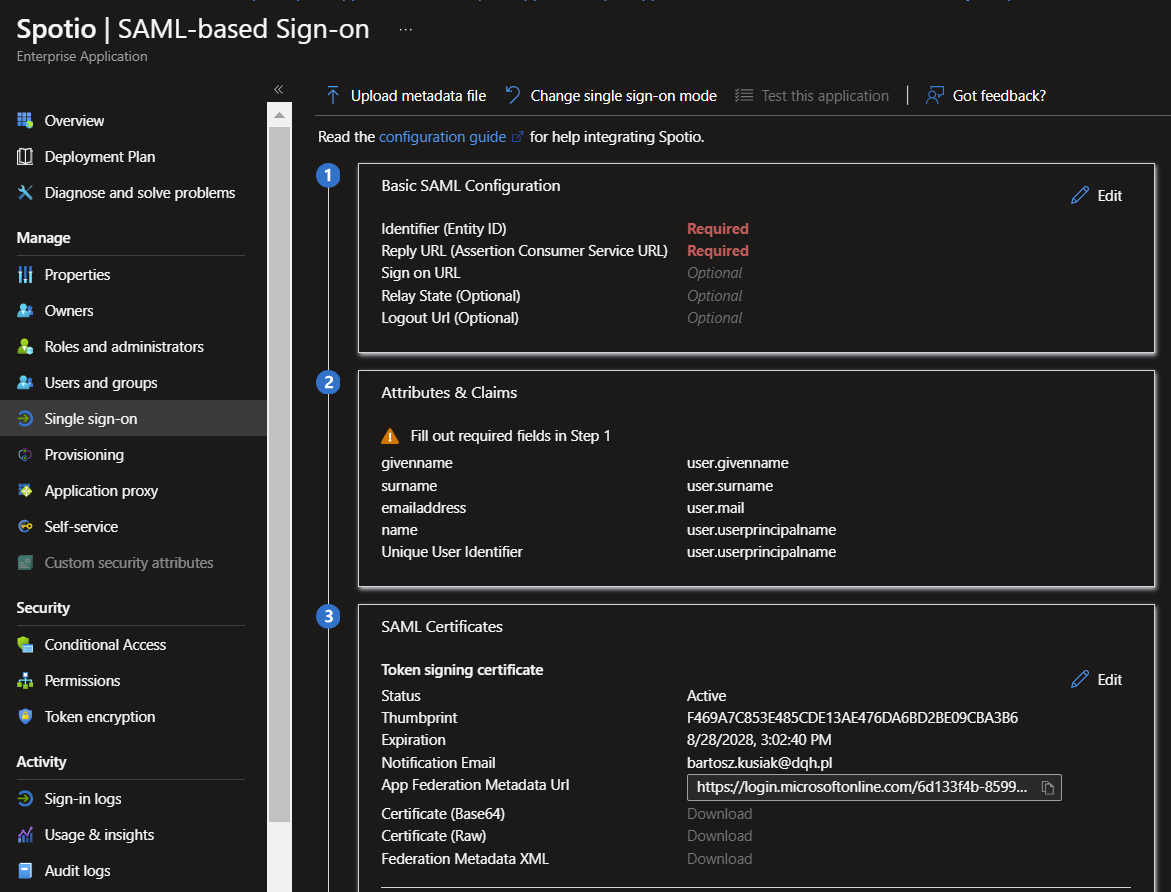

1. From the section SAML certificate copy:

• App Federation Metadata URL from MicrosoftEntraId to Spotio configuration ISSUER URL
• Certificate (base64) to X.509 CERTIFICATE (PEM)

• Save configuration in Spotio and MicrosoftEntraId

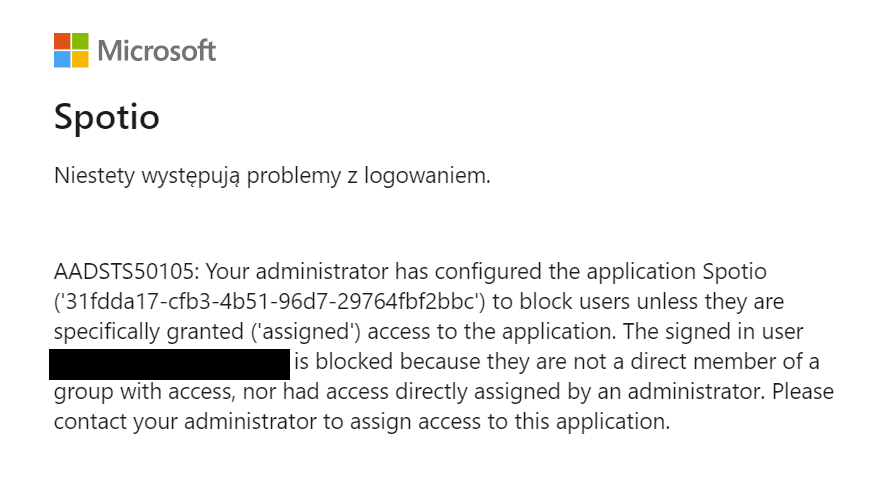

If you see the error message you have to add users / groups to the application

SCIM Integration with MicrosoftEntraId

Introduction

SCIM configuration for MicrosoftEntraId requires Azure Databricks account (must have the Premium plan).
https://learn.microsoft.com/en-us/azure/databricks/administration-guide/users-groups/scim/aad

This document outlines the steps to configure System for Cross-domain Identity Management (SCIM) for SPOTIO within the Microsoft Entra Admin Center. The process includes setting up a new application, generating a token in SPOTIO, and configuring provisioning settings in Microsoft Entra.

Steps

Step 1: Create a New Application in Microsoft Entra

• Navigate to the Microsoft Entra Admin Center.
• Go to Applications -> Enterprise applications.
• Click on New application.
• Select Create your own application.
• Enter the application name as SPOTIO.
• Choose the option Integrate any other application you don't find in the gallery (Non-gallery).
• Save the application.

Step 2: Generate SCIM Token in SPOTIO

• Log in to your SPOTIO account.
• Navigate to Settings -> Integration -> Single Sign-On (SSO).
• In the SCIM section, click on Generate Token.
• Copy the SCIM BASE URL and the SCIM BEARER TOKEN.

Step 3: Configure SCIM Provisioning in Microsoft Entra

• Return to the Microsoft Entra Admin Center.
• Navigate to Applications -> Enterprise applications -> SPOTIO.
• Go to Provisioning -> Manage -> Provisioning.
• Set the Provisioning Mode to Automatic.
• In the Admin Credentials section, enter the following:
  • Tenant URL: Paste the SCIM BASE URL from SPOTIO.
  • Secret Token: Paste the SCIM BEARER TOKEN from SPOTIO.
• Click on Test Connection.
• If the connection is successful, click Save.

Step 4: Configure Attribute Mappings

• In the Mappings section, click on Provision Microsoft Entra ID Groups.

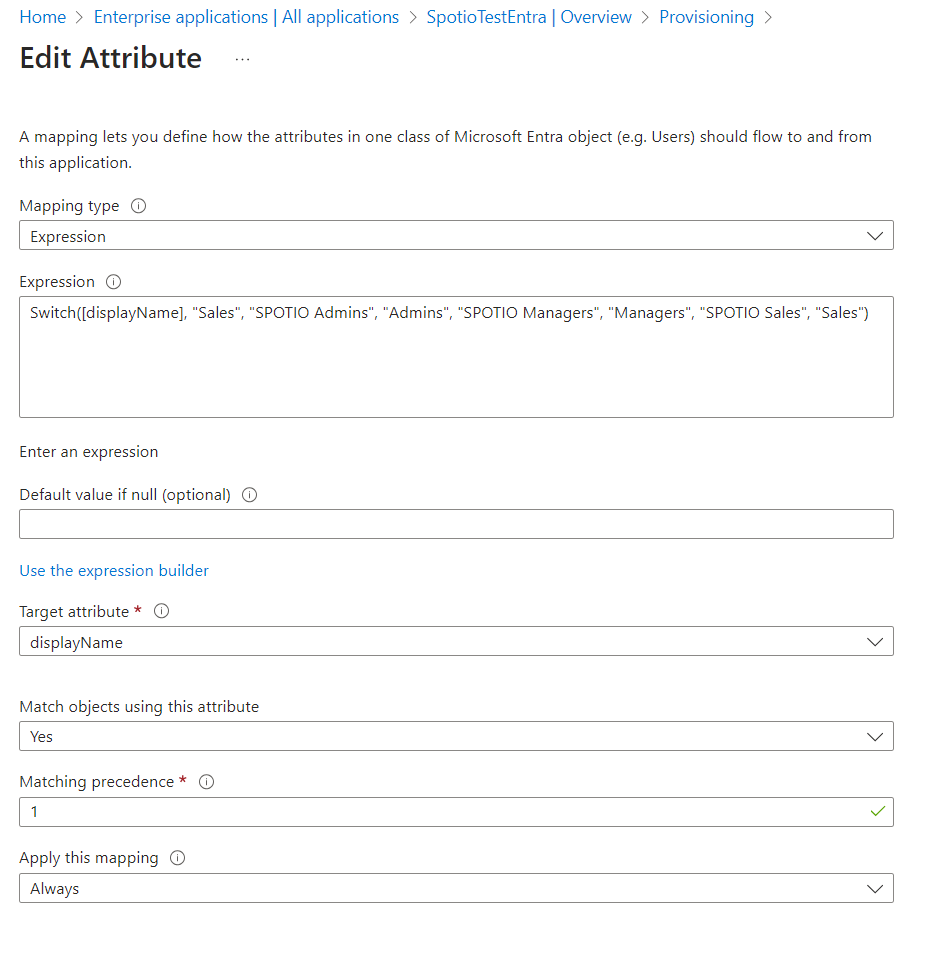

For the attribute displayName, set the Expression to:
Switch([displayName], "Sales", "SPOTIO Admins", "Admins", "SPOTIO Managers", "Managers", "SPOTIO Sales", "Sales")

• • This expression maps groups from Microsoft Entra to groups in SPOTIO. In this example, there are three groups in Microsoft Entra: SPOTIO Admins, SPOTIO Managers, and SPOTIO Sales.
  • Save the settings.
• Next, in the Mappings section, click on Provision Microsoft Entra ID Users.
  • Configure the following attribute mappings:
    • userName
    • active
    • emails[type eq "work"].value
    • name.givenName
    • name.familyName
    • name.formatted
    • phoneNumbers[type eq "work"].value
• Map these attributes to the corresponding Microsoft Entra ID Attribute.
• Save the settings.

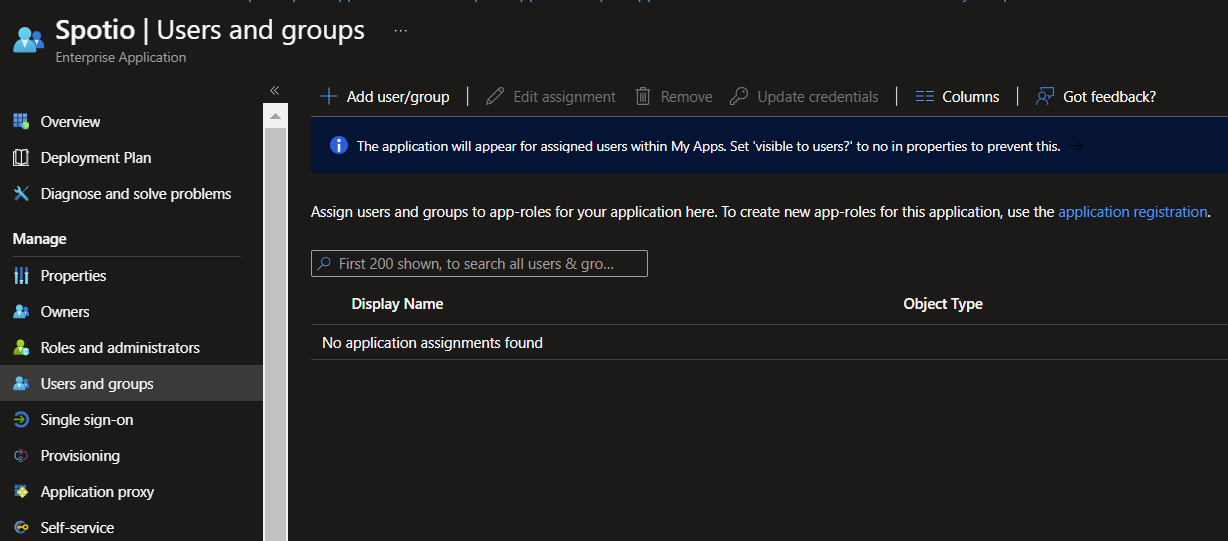

Step 5: Assign Groups or Users in Microsoft Entra

• In Microsoft Entra, navigate to Applications -> Enterprise applications -> SPOTIO -> Users and Groups.
• Assign the groups or users you want to synchronize to the SPOTIO application.

Step 6: Start Provisioning

• Return to the Provisioning section.
• Click on Start provisioning to begin the synchronization process.
