Topic: Webhooks
Audience: Sales Admins and technical staff/developers
Details: What are webhooks? Webhooks allow your application to receive notifications when some actions or events occur. Spotio will make a POST request to your endpoint with event information for example when new lead is added. You can configure what events you would like to get and for what endpoint.

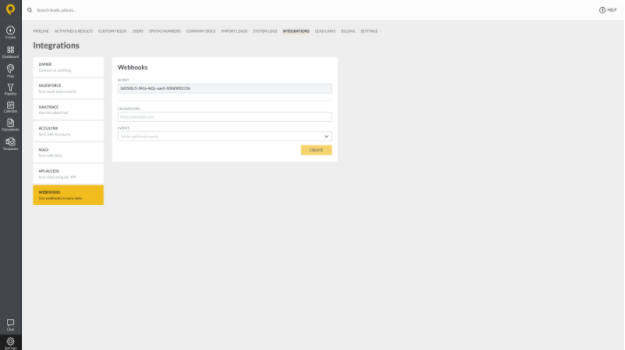

How do I create webhooks? Navigate to the SPOTIO web application and go to Settings → Integrations → Webhooks. On this page you can see the secret you’ll need to share with the connecting system, as well as the field to input the valid URL.
Once you’ve set up the URL, you can then see the selection for which events that occur in SPOTIO will then push data into your connected system.
Possible event types:
|
Event type |
Description |
|
activity.created |
when activity is created |
|
activity.deleted |
when activity is deleted |
|
activity.updated |
when activity is updated |
|
activity.done |
when activity is done, for example lead staged has changed |
|
appointment.created |
when appointment is created |
|
appointment.updated |
when appointment is update |
|
appointment.deleted |
when appointment is deleted |
|
lead.added |
when lead is added |
|
lead.deleted |
when lead is deleted |
|
lead.updated |
when lead is updated |
How to test Webhooks:
To see what data is sent from Spotio you need to open a page: https://pipedream.com/sources. To this application we will send data from Spotio. To make it possible, you need to integrate webhooks into Spotio. In the Callback URL field enter the address found in pipedream, select the event, execute this event in Spotio and go to Pipedream. Below the video:
For further information we’ve provided the webhook request schema:
{
"payload": [
{
"data": {
... object format depends on the event ...
}
},
"type": "lead.added",
"date": "2020-09-03T19:43:23.069437+00:00"
}
]
}
|
Attribute |
Type |
Description |
|
payload |
array |
An array of event objects |
The event object:
|
Attribute |
Type |
Description |
|
date |
datetime offset |
Time when the event occurred |
|
type |
string |
Event type |
|
data |
object |
Event data |
Your webhook endpoint must respond with code 200, otherwise Spotio will retry the request up to 3 times with increasing intervals.Please use asynchronous processing, because each request timeout after 10 seconds.
Requests include an X-Signature header. The header contains a hex-encoded HMAC-SHA256 signature of the request body, using your secret as the signing key. Your app is able to verify that the request came from Spotio.
Example Webhooks for each event:
Leads
{
"payload": [
{
"data": {
"id": "5f5214ef2050870001dab572",
"createdAt": "2020-09-04T10:20:31.3778028+00:00",
"updatedAt": "2020-09-04T10:20:31.3778028+00:00",
"assignedUserId": 73244,
"assignedUserName": "Maciej Królicki",
"assignedUserEmail": "maciej+100@spotio.com",
"assignedUserPhone": "+48796329885#100",
"updatedAtUserName": "Maciej Królicki",
"updatedAtUserEmail": "maciej+100@spotio.com",
"company": "Ergo Arena",
"address": {
"fullAddress": "plac Dwóch Miast 1, 80-344 Gdańsk, Poland",
"lat": 54.426445545222734,
"lng": 18.58053313396899,
"street": "Pomorskie",
"houseNumber": "1",
"zip": "80-344",
"city": "Gdańsk",
"state": "Pomorskie",
"country": "PL"
},
"fields": [
{
"id": 16,
"values": [
"10-100"
],
"title": "Number of employees"
}
],
"contacts": [
{
"firstName": "Jan",
"lastName": "Kowalski",
"fields": [
{
"id": 2,
"values": [
"jan.kowalski@ergoarena.pl"
],
"title": "Email"
},
{
"id": 3,
"values": [
"+48 600500600"
],
"title": "Phone"
}
]
}
],
"stageId": 1,
"stageName": "Prospecting",
"value": 200000.0,
"lastActivityTime": "2020-09-04T10:20:31.3778028+00:00",
"visitsCount": 0,
"dateOfAssignment": "2020-09-04T10:20:31.3778028+00:00",
"callCount": 0
},
"type": "lead.added",
"date": "2020-09-04T10:20:31.3778028+00:00"
}
]
}
The lead object:
|
Attribute |
Type |
Description |
|
id |
string |
An identifier |
|
createdAt |
datetime offset |
Date of creation |
|
updatedAt |
datetime offset |
Date of update |
|
updatedAtUserName |
int |
Updated by user name |
|
updatedAtUserEmail |
string |
Updated by user email |
|
assignedUserId |
int |
Assigned to user id |
|
assignedUserName |
string |
Assigned to user name |
|
assignedUserEmail |
string |
Assigned to user email |
|
company |
string |
The company name |
|
address |
object |
|
|
fields |
array |
An array of fields |
|
contacts |
array |
An array of contacts |
|
stageId |
int |
Current lead stage id |
|
stageName |
string |
Current lead stage name |
|
value |
decimal |
Lead value |
|
lastActivityTime |
datetime offset |
Last activity date |
|
visitsCount |
int |
Number of visits |
|
dateOfAssignment |
datetime offset |
Date of assignment to user |
|
callCount |
int |
Number of calls |
Activities
{
"payload": [
{
"data": {
"id": 536061869,
"title": "Text title",
"notes": "note note note note",
"date": "2020-09-08T11:30:00.974+00:00",
"duration": 15,
"type": "Event",
"done": false,
"previousStageId": 1,
"previousStageName": "Prospecting",
"stageId": 1,
"stageName": "Prospecting",
"lead": {
"id": "5f5214ef2050870001dab572",
"createdAt": "2020-09-04T10:20:31.3778028+00:00",
"updatedAt": "2020-09-04T10:29:43.9446509+00:00",
"assignedUserId": 73244,
"assignedUserName": "Maciej Królicki",
"assignedUserEmail": "maciej+100@spotio.com",
"assignedUserPhone": "+48796329885#100",
"updatedAtUserName": "Maciej Królicki",
"updatedAtUserEmail": "maciej+100@spotio.com",
"company": "Ergo Arena",
"address": {
"fullAddress": "plac Dwóch Miast 1, 80-344 Gdańsk, Poland",
"lat": 54.426445545222734,
"lng": 18.58053313396899,
"street": "Pomorskie",
"houseNumber": "1",
"zip": "80-344",
"city": "Gdańsk",
"state": "Pomorskie",
"country": "PL"
},
"fields": [
{
"id": 16,
"values": [
"10-100"
],
"title": "Number of employees"
}
],
"contacts": [
{
"firstName": "Jan",
"lastName": "Kowalski",
"fields": [
{
"id": 2,
"values": [
"jan.kowalski@ergoarena.pl"
],
"title": "Email"
},
{
"id": 3,
"values": [
"+48 600500600"
],
"title": "Phone"
}
]
}
],
"stageId": 1,
"stageName": "Prospecting",
"value": 200000.0,
"lastActivityTime": "2020-09-04T10:29:43.9446509+00:00",
"visitsCount": 0,
"dateOfAssignment": "2020-09-04T10:20:31.3778028+00:00",
"callCount": 0,
"nextActivityTime": "0001-01-01T00:00:00+00:00"
}
},
"type": "activity.created",
"date": "2020-09-04T10:31:16.3852738+00:00"
}
]
}
The activity object:
|
Attribute |
Type |
Description |
|
id |
string |
An identifier |
|
title |
string |
Title |
|
notes |
string |
Notes |
|
date |
datetime offset |
Date |
|
duration |
int |
Duration in minutes |
|
type |
string / enum |
|
|
done |
boolean |
Is activity done |
|
previousStageId |
int |
Previous lead stage id |
|
previousStageName |
string |
Previous lead stage name |
|
stageId |
int |
Current lead stage id |
|
stageName |
string |
Current lead stage name |
|
lead |
The lead object |
Appointments
{
"payload": [
{
"data": {
"id": 300373500,
"title": "Meet with boss",
"notes": "Prepare special offers",
"durationInMinutes": 60,
"date": "2020-09-06T11:30:00+00:00",
"completed": false,
"lead": {
"id": "5f5214ef2050870001dab572",
"createdAt": "2020-09-04T10:20:31.3778028+00:00",
"updatedAt": "2020-09-04T10:20:31.3778028+00:00",
"assignedUserId": 73244,
"assignedUserName": "Maciej Królicki",
"assignedUserEmail": "maciej+100@spotio.com",
"assignedUserPhone": "+48796329885#100",
"updatedAtUserName": "Maciej Królicki",
"updatedAtUserEmail": "maciej+100@spotio.com",
"company": "Ergo Arena",
"address": {
"fullAddress": "plac Dwóch Miast 1, 80-344 Gdańsk, Poland",
"lat": 54.426445545222734,
"lng": 18.58053313396899,
"street": "Pomorskie",
"houseNumber": "1",
"zip": "80-344",
"city": "Gdańsk",
"state": "Pomorskie",
"country": "PL"
},
"fields": [
{
"id": 16,
"values": [
"10-100"
],
"title": "Number of employees"
}
],
"contacts": [
{
"firstName": "Jan",
"lastName": "Kowalski",
"fields": [
{
"id": 2,
"values": [
"jan.kowalski@ergoarena.pl"
],
"title": "Email"
},
{
"id": 3,
"values": [
"+48 600500600"
],
"title": "Phone"
}
]
}
],
"stageId": 1,
"stageName": "Prospecting",
"value": 200000.0,
"lastActivityTime": "2020-09-04T10:20:31.3778028+00:00",
"visitsCount": 0,
"dateOfAssignment": "2020-09-04T10:20:31.3778028+00:00",
"callCount": 0
}
},
"type": "appointment.created",
"date": "2020-09-04T10:26:07.1127979+00:00"
}
]
}
The appointment object:
|
Attribute |
Type |
Description |
|
id |
int |
An identifier |
|
title |
string |
Title |
|
notes |
string |
Notes |
|
durationInMinutes |
int |
Duration in minutes |
|
date |
datetime offset |
Date of appointment |
|
completed |
boolean |
Is appointment completed |
|
lead |
The lead object |
